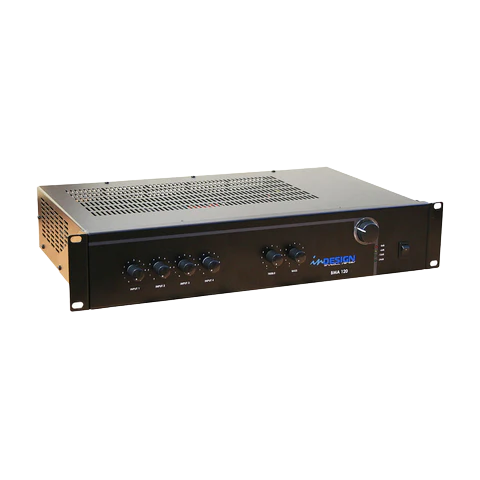

inDESIGN BMA120 – 120w 100v line mixer amplifier
The inDESIGN BMA120 is a high quality mixer amplifier for commercial and industrial audio applications. The BMA series feature 4 Mic/line inputs. Microphone input 1 features a mute so that a Microphone on this channel will mute all other inputs, useful for paging announcements. The BMA Series provide either 4 Ohm or constant voltage 100V speaker outputs. A pre-amp out/power amp in link allows for the mixer audio signal to be sent to an external equaliser or a booster amplifier. Shipped with a link fitted.The mixer amplifiers are part of inDESIGN’s Install Series, which also includes mixers and power amplifiers. These units provide excellent features and value.
Specifications
- Output power: 120W
- AC power supply: 230VAC – 240VAC
- Output low impedance: 4 ohm – 8 ohm
- Hi impedance output:70V / 40 ohm100V / 80 ohm
- Input sensitivity:Microphone balanced XLR, 4mVLine RCA 500mV
- Pre-Out: Line output level 650mV
- Frequency response: 50Hz-18Khz, + / – 2dB. At -3dB rated power
- Noise floor: 9mv at 100V output
- THD (at -3dB rate power): 0.40%
- Tone control: Bass 100Hz + – 10dB, Treble 10kHz + – 10dB
- Control: Input level, tone control, master level, VOX
- VOX: CH 1 has priority over CH2, 3, 4. (AFL)
- Phantom power: 48V at CH 1 MIC XLR
- Cooling: Convection Cooling
- Protection: Thermal protected at 95 degrees, muted input, short circuit, overload
- Level meter: LED meter, range -24dB / 0dB
- Size (mm): 485 x 88 x 275
- Weight KG (Net): 8.7
